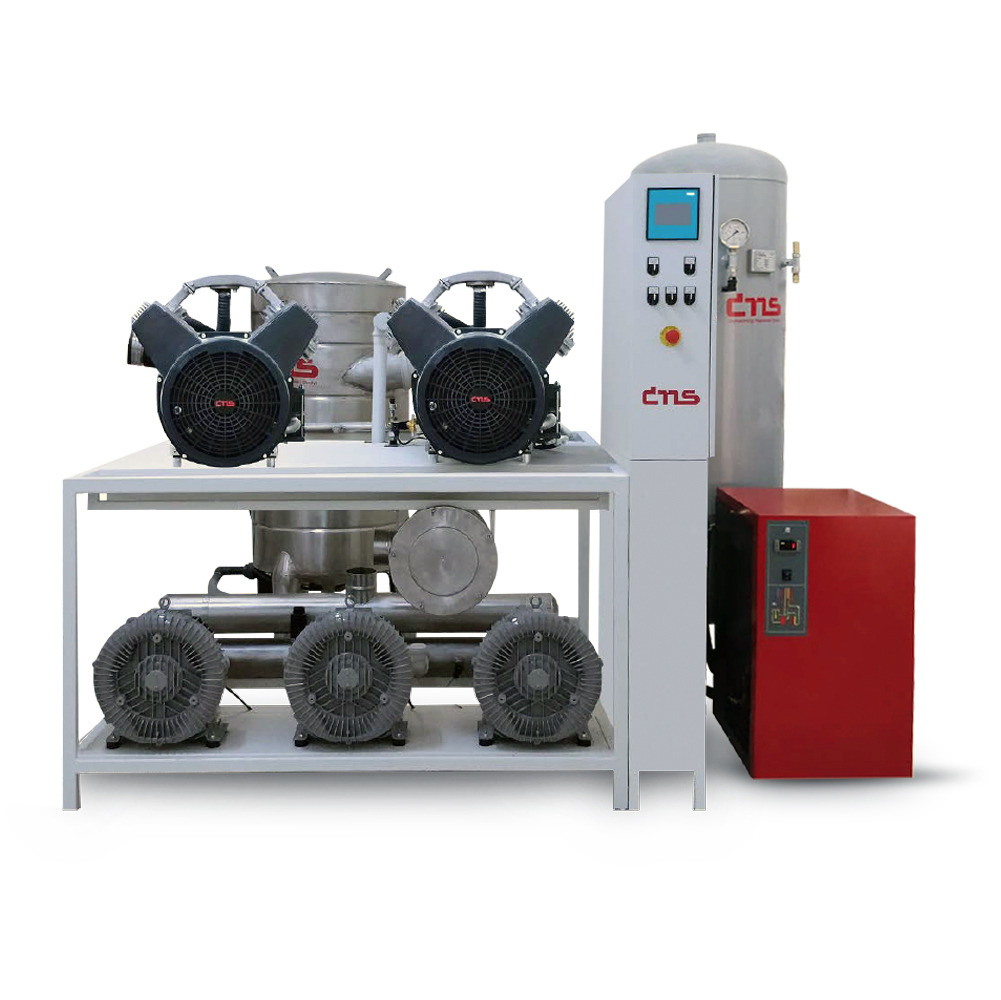

KOMPAS Combined Central Dental Compressor and Suction Systems (50 Unit Capacity)

DMS KOMPAS CENTRAL COMBINED DENTAL COMPRESSOR & SUCTION SYSTEMS 8020-40 D-KOMPAS DP2/4-930 & DA-15000 – SUPERIOR PERFORMANCE AND HYGIENIC AIR SOLUTION

In modern dental practices, compressed air and suction systems work together to ensure the continuous and hygienic operation of dental units. The DMS KOMPAS Central Combined Dental Compressor & Suction Systems, with its 8020-40 D-KOMPAS DP2/4-930 & DA-15000 model, offers a high-performance, hygienic, and energy-efficient solution for large-scale clinical environments such as Faculties of Dentistry, Dental Hospitals, and Oral and Dental Health Centers.

While the DMS KOMPAS system produces oil-free, moisture-free, and particle-free compressed air, it also provides powerful suction to rapidly remove fluids, aerosols, and particles from the patient’s oral cavity, minimizing the risk of infection. The integrated compressor and suction system meets both air and vacuum needs from a single, centralized structure, maximizing efficiency and operational control.

DMS CENTRAL COMBINED DENTAL COMPRESSOR & SUCTION SYSTEMS
8020-40 D-KOMPAS DP2/4-930 & DA-10000 Technical Specifications

Compressor Section (DP2/4-930):
Number of Motors: 2
Voltage: 400V (3 Phase)
Frequency: 50 Hz
Power Rating: 26 kW
Air Output at 5 Bar: 2040 L/min
Air Output at 7 Bar: 1860 L/min
Operating Pressure: 6-8 Bar
Compressed Air Tank Capacity: 500 L
Safety Valve Activation Pressure: 10 Bar
Dryer Type: Refrigerant Cooling System
Drying Capacity: 150-210 cm³
Noise Level: 94 dB(A)
Protection Class: IP20 / IP30 / IP40
Number of Units Operable at 100% Capacity: 45
Number of Units Operable at 60% Capacity: 75

Suction Section (DA-10000):
Number of Motors: 2
Voltage: 400V (3 Phase)
Frequency: 50 Hz
Power Rating: 8.8 kW
Free Suction Capacity: 17,500 L/min
Suction Capacity at 160 mbar: 11,600 L/min
Separator Tank Capacity: 300 L
Operating Pressure: -160 mbar
Separator Tank Pressure: -400 mbar
Noise Level: 94 dB(A)
Protection Class: IP20 / IP30 / IP40
Number of Units Operable at 100% Capacity: 38
Number of Units Operable at 60% Capacity: 64

This model offers a centralized compressed air and suction solution for Faculties of Dentistry, Dental Hospitals, Oral and Dental Health Centers, Private Clinics, and Laboratories, ensuring hygienic and uninterrupted operation. Certified as MDR Class IIa, this system is fully compliant with European Union medical device standards and provides the highest level of patient safety.
